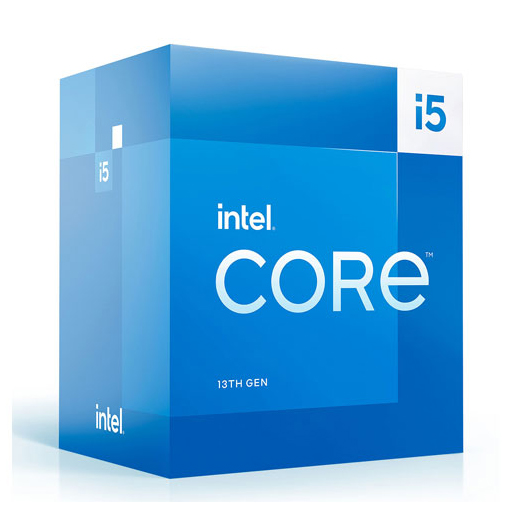

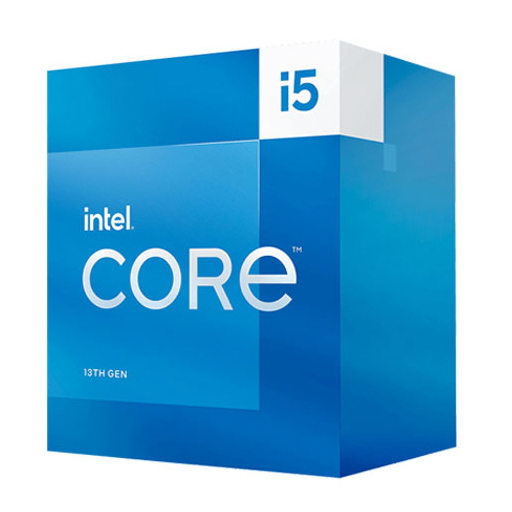

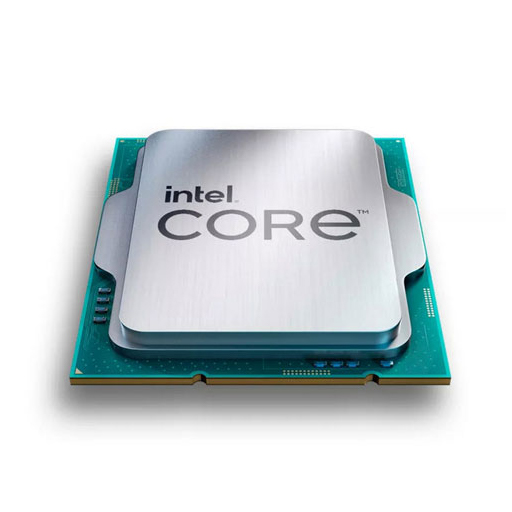

INTEL CORE I5-13400 PROCESSOR 20MB CACHE, 2.50 GHZ

Description

Essentials

---

Product Collection – 13th Generation Intel® Core™ i5 Processors
Code Name – Products formerly Raptor Lake
Vertical Segment – Desktop
Processor Number – i5-13400
Lithography – Intel 7
Use Conditions – PC/Client/Tablet

---

---

CPU Specifications

---

Total Cores – 10
# of Performance-cores – 6
# of Efficient-cores – 4
Total Threads – 16
Max Turbo Frequency – 4.60 GHz
Performance-core Max Turbo Frequency – 4.60 GHz
Efficient-core Max Turbo Frequency – 3.30 GHz
Performance-core Base Frequency – 2.50 GHz
Efficient-core Base Frequency – 1.80 GHz
Cache – 20 MB Intel® Smart Cache
Total L2 Cache – 9.5 MB
Processor Base Power – 65 W
Maximum Turbo Power – 154 W

---

---

Supplemental Information

---

Marketing Status – Launched
Launch Date – Q1’23
Embedded Options Available – lYes

---

---

Memory Specifications

---

Max Memory Size (dependent on memory type) – 128 GB
Memory Types – Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels – 2
Max Memory Bandwidth – 76.8 GB/s

---

---

Processor Graphics

---

Processor Graphics – Intel® UHD Graphics 730
Graphics Base Frequency – 300 MHz
Graphics Max Dynamic Frequency – 1.55 GHz
Graphics Output – eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units – 24
Max Resolution (HDMI) – 4096 x 2160 @ 60Hz
Max Resolution (DP) – 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) – 5120 x 3200 @ 120Hz
DirectX* Support – 12
OpenGL* Support – 4.5
OpenCL* Support – 3
Multi-Format Codec Engines – 1
Intel® Quick Sync Video – Yes
Intel® Clear Video HD Technology – Yes
# of Displays Supported – 4
Device ID – 0x4682/0xA782

---

---

Expansion Options

---

Direct Media Interface (DMI) Revision – 4
Max # of DMI Lanes – 8
Scalability – 1S Only
PCI Express Revision – 5.0 and 4.0
PCI Express Configurations – Up to 1×16+4 | 2×8+4
Max # of PCI Express Lanes – 20

---

---

Package Specifications

---

Sockets Supported – FCLGA1700
Max CPU Configuration – 1
Thermal Solution Specification – PCG 2020C
TJUNCTION – 100°C
Package Size – 45.0 mm x 37.5 mm
