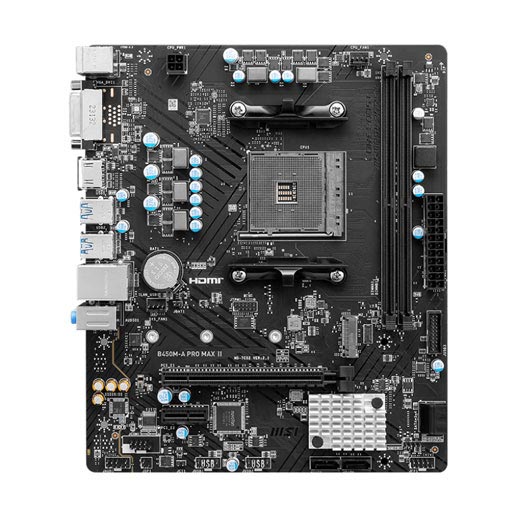

MSI B450M-A PRO MAX II DDR4 MOTHERBOARD
₨ 33,500.00
» BRAND : MSI
» MODEL NAME : MSI B450M-A PRO MAX II
» FORM FACTOR : Micro ATX
» CPU SOCKET TYPE : AMD AM4
» RAM SUPPORT : DDR4
Out of stock
Description
| CHIPSET | AMD B450 | |
| CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series an | |
| 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors | ||
| Socket AM4 | ||
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB | |
| Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) | ||
| Supports Dual-Channel mode | ||
| Supports non-ECC, UDIMM memory | ||
| Supports ECC UDIMM memory (non-ECC mode) | ||
| Supports un-buffered memory | ||
| ONBOARD GRAPHICS | 1x HDMI™ | |
| Support HDMITM 1.4, maximum resolution of 4K 24Hz* | ||
| 1x DVI | ||
| Support DVI-D, maximum resolution of 1920×1200 60Hz | ||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||
| SLOT | 1x PCI-E x16 slot | |
| 1x PCI-E x1 slot | ||
| PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) | ||
| PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) | ||
| STORAGE | 1x M.2 | |
| M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices | ||
| 4x SATA 6G | ||
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| USB | 2x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | ||
| 4x USB 3.2 Gen1 Type A (Rear) | ||
| 2x USB 3.2 Gen1 Type A (Front) | ||
| LAN | Realtek® 8125 2.5Gbps LAN controller | |
| AUDIO | Realtek® ALC897 Codec | |
| 7.1-Channel High Definition Audio | ||
| INTERNAL IO | 1x Power Connector(ATX_PWR) | |
| 1x Power Connector(CPU_PWR) | ||
| 1x CPU Fan | ||
| 1x System Fan | ||
| 2x Front Panel (JFP) | ||
| 1x Chassis Intrusion (JCI) | ||
| 1x Front Audio (JAUD) | ||
| 1x Com Port (JCOM) | ||
| 1x TPM pin header(Support TPM 2.0) | ||
| 4x USB 2.0 ports | ||
| 2x USB 3.2 Gen1 Type A ports | ||
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | |
| PCB INFO | Matx | |
| 200mmx236mm |
