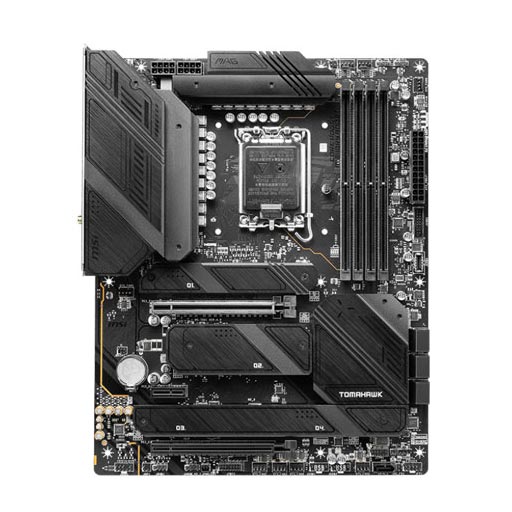

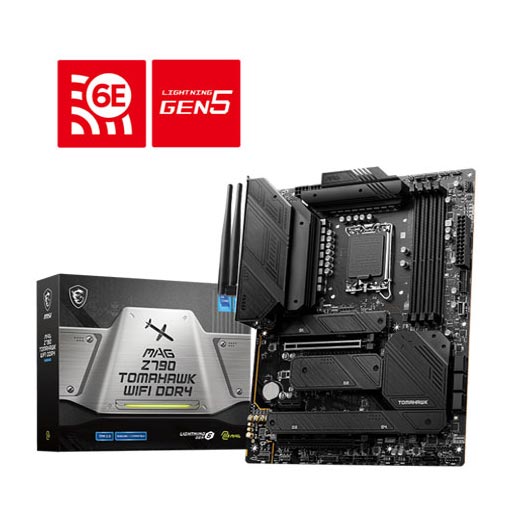

MSI MAG Z790 TOMAHAWK WIFI DDR4 MOTHERBOARD
₨ 133,000.00
» BRAND : MSI
» MODEL NAME : MSI MGA Z790
» FORM FACTOR : ATX
» CPU SOCKET TYPE : LGA 1700
» RAM SUPPORT : DDR4
Out of stock
Description
| CHIPSET | INTEL Z790 | |||||||||||||||
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors | |||||||||||||||
| MEMORY | 4x DDR4, Maximum Memory Capacity 128GB | |||||||||||||||
| Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) | ||||||||||||||||
| Max. overclocking frequency: | ||||||||||||||||
| • 1DPC 1R Max speed up to 5333+ MHz | ||||||||||||||||
| • 1DPC 2R Max speed up to 4800+ MHz | ||||||||||||||||
| • 2DPC 1R Max speed up to 4400+ MHz | ||||||||||||||||
| • 2DPC 2R Max speed up to 4000+ MHz | ||||||||||||||||
| Supports Dual-Channel mode | ||||||||||||||||
| Supports non-ECC, un-buffered memory | ||||||||||||||||
| Supports Intel® Extreme Memory Profile | ||||||||||||||||
| ONBOARD GRAPHICS | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* | |||||||||||||||
| Support DP 1.4, maximum resolution of 8K 60Hz* | ||||||||||||||||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||||||||||||||||
| 1x HDMI™ | ||||||||||||||||
| 1x DisplayPort | ||||||||||||||||
| EXPANSION SLOT | 2x PCI-E x16 slot | |||||||||||||||
| Supports x16/x4 | ||||||||||||||||
| 1x PCI-E x1 slot | ||||||||||||||||
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | ||||||||||||||||
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | ||||||||||||||||
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | ||||||||||||||||
| STORAGE | 4x M.2 slot | |||||||||||||||
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices | ||||||||||||||||
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | ||||||||||||||||
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | ||||||||||||||||
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | ||||||||||||||||
| 7x SATA 6G port | ||||||||||||||||
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* | |||||||||||||||
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | ||||||||||||||||
| * SATA_A1_A2 do not support RAID function. | ||||||||||||||||
| USB | 4x USB 2.0 (Front) | |||||||||||||||
| 4x USB 3.2 Gen1 Type A (Rear) | ||||||||||||||||
| 2x USB 3.2 Gen1 Type A (Front) | ||||||||||||||||
| 4x USB 3.2 Gen2 Type A (Rear) | ||||||||||||||||
| 1x USB 3.2 Gen2 Type C (Rear) | ||||||||||||||||
| 1x USB 3.2 Gen2 Type C (Front) | ||||||||||||||||
| 1x USB 3.2 Gen2x2 Type C (Rear) | ||||||||||||||||
| LAN | Intel® 2.5Gbps LAN | |||||||||||||||
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E | |||||||||||||||
| The Wireless module is pre-installed in the M.2 (Key-E) slot | ||||||||||||||||
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | ||||||||||||||||
| Supports 802.11 a/ b/ g/ n/ ac/ ax | ||||||||||||||||
| Supports Bluetooth® 5.3, FIPS, FISMA | ||||||||||||||||
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. | ||||||||||||||||
| AUDIO | Realtek® ALC4080 Codec | |||||||||||||||
| 7.1-Channel USB High Performance Audio | ||||||||||||||||
| Supports S/PDIF output | ||||||||||||||||
| Supports up to 32-Bit/384 kHz playback on front panel | ||||||||||||||||
| INTERNAL I/O | 1x Power Connector(ATX_PWR) | |||||||||||||||
| 2x Power Connector(CPU_PWR) | ||||||||||||||||
| 1x CPU Fan | ||||||||||||||||
| 1x Pump Fan | ||||||||||||||||
| 6x System Fan | ||||||||||||||||
| 2x Front Panel (JFP) | ||||||||||||||||
| 1x Chassis Intrusion (JCI) | ||||||||||||||||
| 1x Front Audio (JAUD) | ||||||||||||||||
| 1x TBT connector (JTBT, supports RTD3) | ||||||||||||||||
| 1x Tuning Controller connector(JDASH) | ||||||||||||||||
| 3x Addressable V2 RGB LED connector (JARGB_V2) | ||||||||||||||||
| 1x RGB LED connector(JRGB) | ||||||||||||||||
| 1x TPM pin header(Support TPM 2.0) | ||||||||||||||||
| 4x USB 2.0 | ||||||||||||||||
| 2x USB 3.2 Gen1 Type A | ||||||||||||||||
| 1x USB 3.2 Gen2 Type C | ||||||||||||||||
| LED FEATURE | 4x EZ Debug LED | |||||||||||||||

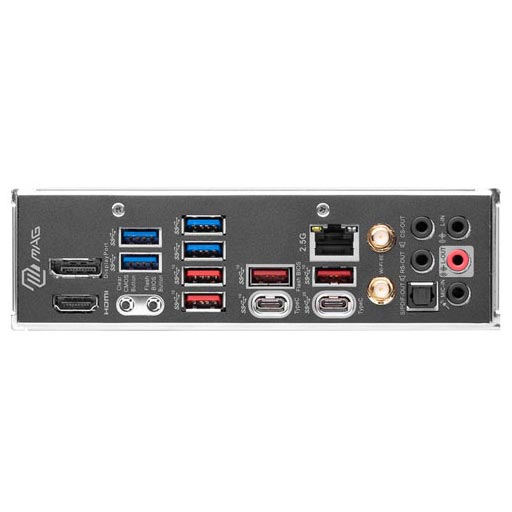

| BACK PANEL PORTS | DisplayPort 1.4 | |||||||||||||||
| USB 3.2 Gen 1 5Gbps Type-A | ||||||||||||||||
| USB 3.2 Gen 2 10Gbps Type-A | ||||||||||||||||
| 2.5G LAN Port, | ||||||||||||||||
| HD Audio Connectors | ||||||||||||||||
| HDMI™ 2.1 Port | ||||||||||||||||
| Clear CMOS Button | ||||||||||||||||
| Flash BIOS Button | ||||||||||||||||
| USB 3.2 Gen 2 10Gbps Type-C | ||||||||||||||||
| USB 3.2 Gen 2×2 20Gbps Type-C | ||||||||||||||||
| Wi-Fi / Bluetooth Antenna | ||||||||||||||||
| Optical S/PDIF OUT | ||||||||||||||||
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | |||||||||||||||
| PCB DIMENSION | ATX | |||||||||||||||
| 243.84mmx304.8mm | ||||||||||||||||
Be the first to review “MSI MAG Z790 TOMAHAWK WIFI DDR4 MOTHERBOARD”
Related products
-
- Out of Stock

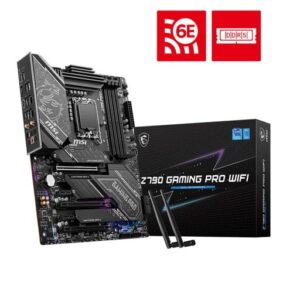

MSI Z790 GAMING PRO (WIFI) DDR5 MOTHERBOARD
- ₨ 104,000.00
-
-
- Out of Stock

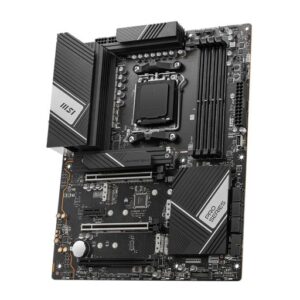

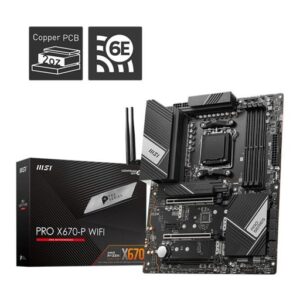

MSI PRO X670 P DDR5 WIFI MOTHERBOARD
