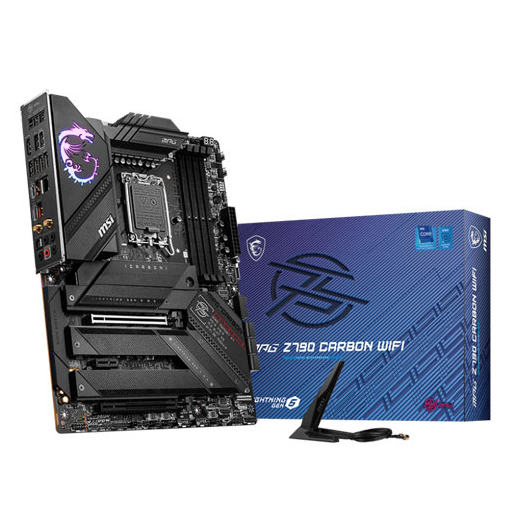

Name: MSI MPG Z790 CARBON (WI-FI) DDR5 MOTHERBOARD
SKU: 2150
Price: 204500.00 LKR
Availability: InStock

MSI MPG Z790 CARBON (WI-FI) DDR5 MOTHERBOARD

₨ 204,500.00

» BRAND : MSI
» MODEL NAME : MSI MPG Z790 CARBON
» FORM FACTOR : ATX
» CPU SOCKET TYPE : LGA 1700
» RAM SUPPORT : DDR5

Categories: MOTHERBOARD, MSI, PC Components Tags: 12th GEN, 13th GEN, B790, intel, INTEL MOTHERBOARD, LGA1700

Description
Reviews (0)

Description

CHIPSET		INTEL Z790

CPU SUPPORT		Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
		LGA 1700

MEMORY		4x DDR5, Maximum Memory Capacity 192GB
		Memory Support 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
		Max. overclocking frequency:
		• 1DPC 1R Max speed up to 7600+ MHz
		• 1DPC 2R Max speed up to 6600+ MHz
		• 2DPC 1R Max speed up to 6400+ MHz
		• 2DPC 2R Max speed up to 5600+ MHz

		Supports Intel® XMP3.0 OC
		Supports Dual-Controller Dual-Channel mode
		Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS		1x HDMI™
		Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
		*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT		2x PCI-E x16 slot
		1x PCI-E x1 slot
		PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
		PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
		PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE		5x M.2
		M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
		M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
		M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
		M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
		M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
		6x SATA 6G
		*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.

RAID		Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
		Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
		* SATA_A1~A2 do not support RAID function.

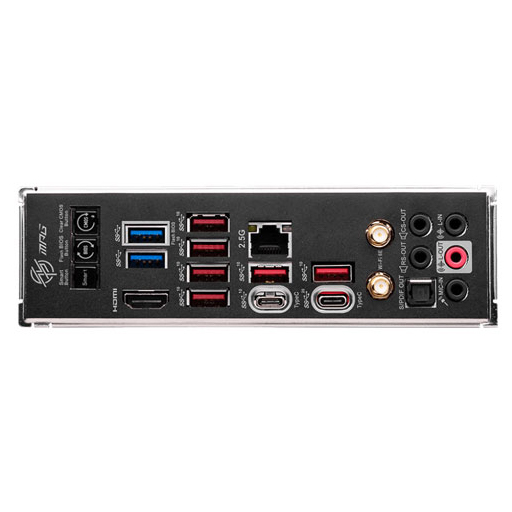

USB		4x USB 2.0 (Front)
		2x USB 3.2 Gen1 Type A (Rear)
		2x USB 3.2 Gen1 Type A (Front)
		6x USB 3.2 Gen2 Type A (Rear)
		1x USB 3.2 Gen2 Type C (Rear)
		1x USB 3.2 Gen2x2 Type C (Rear)
		1x USB 3.2 Gen2x2 Type C (Front)

LAN		Intel® 2.5Gbps LAN

WIRELESS / BLUETOOTH		Intel® Wi-Fi 6E
		The Wireless module is pre-installed in the M.2 (Key-E) slot
		Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
		Supports 802.11 a/ b/ g/ n/ ac/ ax

		Supports Bluetooth® 5.3**, FIPS, FISMA

		* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
		** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO		Realtek® ALC4080 Codec
		7.1-Channel USB High Performance Audio
		Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O		1x Power Connector(ATX_PWR)
		2x Power Connector(CPU_PWR)
		1x CPU Fan
		1x Pump Fan
		5x System Fan
		2x Front Panel (JFP)
		1x Chassis Intrusion (JCI)
		1x Front Audio (JAUD)
		1x TBT connector (JTBT, supports RTD3)
		1x Tuning Controller connector(JDASH)
		2x Addressable V2 RGB LED connector (JARGB_V2)
		1x RGB LED connector(JRGB)
		1x TPM pin header(Support TPM 2.0)
		4x USB 2.0 ports
		2x USB 3.2 Gen1 Type A ports
		1x USB 3.2 Gen 2×2 Type C ports

LED FEATURE		1x EZ LED Control switch
		1x 2-Digit Debug Code LED
		4x EZ Debug LED

PCB DIMENSION		ATX
		243.84mmx304.8mm
