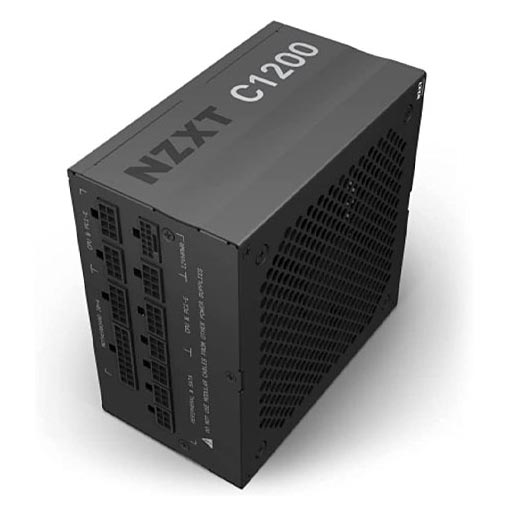

NZXT C1200 – 1200 WATT 80 PLUS GOLD CERTIFIED FULLY MODULAR (UK) POWER SUPPLY
₨ 70,500.00
» BRAND : NZXT
» PART NUMBER : C1200 GOLD
» ENERGY EFFICIENCY : 80 PLUS GOLD
» MODULARITY : FULLY MODULAR
Description
| OUTPUT CONNECTORS |
| 24-pin ATX power:1 |
| 4+4-pin CPU power:1 |
| 8-pin CPU Cable :1 |
| 6+2-pin PCIe power :2 |
| 16-pin (12+4) 12VHPWR PCIe Cable:1 |
| SATA power :8 |
| Peripherals :4 |
| FAN SPECS |
| Dimensions:135 x 135 x 25 mm |
| Speed:0-2300 ± 10% RPM |
| Airflow:93.02 CFM (Tpy.) |
| Noise:44.5 dBA max |
| Bearing:Fluid Dynamic Bearing (FDB) |
| CABLE SPECS |
| 24-pin ATX power:600 mm, Nylon sleeving |
| 4+4-pin CPU power:700 mm, Nylon sleeving |
| 8-Pin CPU Power Cable:700mm, Nylon sleeving |
| 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving |
| 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving |
| SATA power:500 + 150 mm |
| Peripherals:500 + 150 mm |
| GENERAL |
| Dimensions:150 x 150 x 86mm |
| Material(s):Steel, PCB and Plastic |
| Compliance Standard:ATX12V v3.0 / EPS12V v2.92 |
| Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / |
| (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA |
| Model Number:PA-2G1BB |
| UPC |
| UPC (CN):810074842549 |
| UPC (US):810074842563 |
| UPC (EU):810074842570 |
| UPC (UK):810074842587 |
| UPC (AU):810074842594 |
| UPC (JP):810074842600 |
| UPC (WO):810074842631 |
| AC INPUT RATING |
| 100 – 240Vac:14A-7A 50Hz-60Hz |
| DC OUTPUT RATING |
| +3.3V and +5V:22A (120W) |
| +12V:100A (1200W) |
| -12V:0.3A (3.6W) |
| 5Vsb:3A (15W) |
| Total:1200W |
| OPERATION |
| PF Correction:Active @0.96 |
| MTBF:100,000 hours |
| Temperature:0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
| EAN |
| EAN (CN):5056547202464 |
| EAN (US):5056547202488 |
| EAN (EU):5056547202495 |
| EAN (UK):5056547202501 |
| EAN (AU):5056547202518 |
| EAN (JP):5056547202525 |
| EAN (WO):5056547202556 |
| ENERGY EFFICIENCY |
| Rating:80 Plus Gold |
| 20% loading:87.5% @115Vac |
| 50% loading:90.5% @115Vac |
| 100% loading:87.5% @115Vac |
