NZXT N7 B650E WIFI BLACK MOTHERBOARD
₨ 110,000.00
» BRAND : NZXT
» MODEL NAME : NZXT N7 B650E
» FORM FACTOR : ATX
» CPU SOCKET TYPE : AMD AM4
» RAM SUPPORT : DDR5
Description
| CPU |
| AMD Socket AM5 Ryzen™ 7000 Series Processors:Supported |
| CHIPSET |
| AMD:B650 |
| MEMORY |
| DIMM Slots:4, DDR5 only |
| Max Memory Support:128GB |
| Memory Architecture:Dual-Channel |
| OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). |
| Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. |
| Extreme Memory Profile (XMP):Supported |
| EXTended Profiles for Overclocking (EXPO):Supported |
| EXPANSION SLOTS |
| PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1 |
| INTEGRATED GRAPHICS |
| Integrated AMD RDNA™ 2 graphics:Supported |
| HDMI 2.1 TMD Compatible:1 |
| HDR:Supported |
| HDCP 2.3:max. resolution up to 4K 60Hz |
| STORAGE |
| M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1 |
| M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1 |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1 |
| SATA 6Gb/s ports:4 |
| RAID 0/1/10 for SATA storage devices:Supported |
| RAID 0/1/10 for M.2 NVMe storage devices:Supported |
| NVMe SSD as boot disks:Supported |
| LAN |
| Realtek®:RTL8125BG 2.5G LAN |
| WIRELESS |
| 802.11ax Wi-Fi 6E Module:Supported |
| Bluetooth:V5.2 |
| AUDIO |
| Realtek®:ALC1220 Codec |

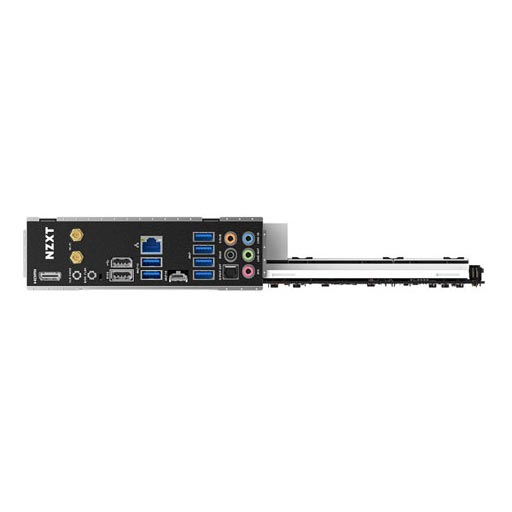

| REAR I/O |
| Wireless antenna SMA connectors:2 |
| HDMI™ port:1 |
| USB 2.0:2 |
| USB 3.2 Gen 2 Type-C port:1 |
| USB 3.2 Gen 2 ports:2 |
| USB 3.2 Gen 1 ports:4 |
| Clear CMOS button:1 |
| BIOS Flashback button:1 |
| LAN (RJ45) port:1 |
| Audio jacks:5 |
| Optical S/PDIF Out port:1 |
| INTERNAL I/O |
| 24-pin ATX power connector:1 |
| 8+4-pin ATX 12V power connector:1 |
| 4-pin CPU_FAN connector:1 |
| 4-pin AIO_PUMP connector:1 |
| 4-pin SYS_FAN connectors:5 |
| NZXT RGB LED connectors:4 |
| 5V ARGB LED connector:2 |
| USB 2.0 header (Up to 6 USB 2.0 ports):3 |
| USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2 |
| USB 3.2 Gen2x2 front panel header (For USB Type-C):1 |
| Front panel audio connector:1 |
| Power button:1 |
| Reset button:1 |
| POST LEDs:4 |
| GENERAL |
| System Requirements:NZXT CAM software requires Microsoft Windows® 11/10 operating system. |
| Form Factor:ATX |
| Certifications:FCC, CE, WHQL, ErP/EuP Ready |
| Model Number:N7-B65XT-W1 (White) / N7-B65XT-B1 (Black) |
| UPC:810074842877 (White) / 810074842884 (Black) |
| EAN:5056547202815 (White) / 5056547202822 (Black) |
