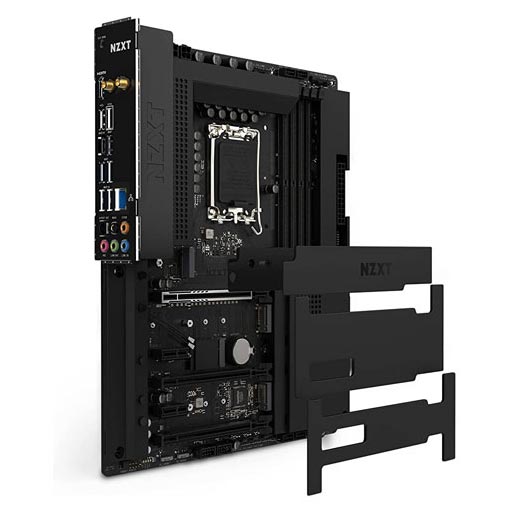

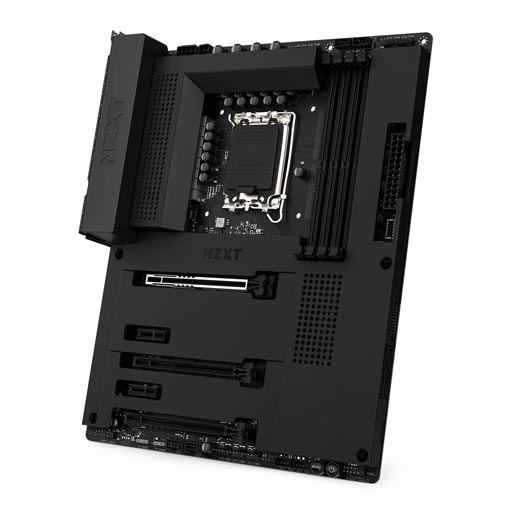

NZXT N7 Z790 WIFI BLACK MOTHERBOARD
₨ 110,000.00
» BRAND : NZXT
» MODEL NAME : N7 Z790 B
» FORM FACTOR : ATX
» CPU SOCKET TYPE : LGA 1700
» RAM SUPPORT : DDR5
Description
| CPU & SOCKET |
| Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list. |
| Intel® Hybrid Technology:Supported |
| Turbo Boost Max 3.0 Technology:Supported |
| Intel® Thermal Velocity Boost (TVB):Supported |
| Intel® Adaptive Boost Technology (ABT):Supported |
| CHIPSET |
| Intel®:Z790 |
| MEMORY |
| DIMM Slots:4, DDR5 only |
| Max Memory Support:128GB, DDR5 |
| Memory Architecture:Dual-Channel |
| OC Frequency:6000+(O.C.). Please refer to memory QVL. |
| Intel® Extreme Memory Profile (XMP) 3.0:Supported |
| EXPANSION SLOTS |
| PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode:2 (Supports NVMe SSD as boot disks) |
| PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*:2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2:1 |
| STORAGE |
| M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1 |
| M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode):1 |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode):1 |
| SATA 6Gb/s ports:4 |
| Intel® Volume Management Device (VMD):Supported |
| NVMe SSD as boot disks:Supported |
| LAN |
| Realtek®:RTL8125BG 2.5G LAN |
| WIRELESS |
| Dual Band Wi-Fi 6E:Supported |
| Bluetooth:V5.2 |
| AUDIO |
| Realtek®:ALC1220 Codec |

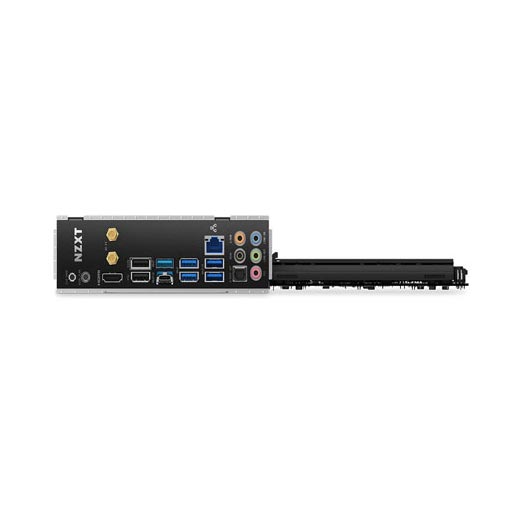

| REAR I/O |
| Wireless antenna SMA connectors:2 |
| HDMI™ port:1 |
| USB 2.0:2 |
| USB 3.2 Gen 2×2 Type-C port:1 |
| USB 3.2 Gen 2 ports:2 |
| USB 3.2 Gen 1 ports:3 |
| Clear CMOS button:1 |
| LAN (RJ45) port:1 |
| Audio jacks:5 |
| Optical S/PDIF Out port:1 |
| INTERNAL I/O |
| 24-pin ATX power connector:1 |
| 8+4-pin ATX 12V power connector:1 |
| 4-pin CPU_FAN connector:1 |
| 4-pin AIO_PUMP connector:1 |
| 4-pin SYS_FAN connectors:5 |
| NZXT RGB LED connectors:4 |
| 5V ARGB LED connector:2 |
| USB 2.0 header (Up to 4 USB 2.0 ports):2 |
| USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports):1 |
| USB 3.2 Gen2x2 front panel header (For USB Type-C):1 |
| Front panel audio connector:1 |
| Power button:1 |
| Reset button:1 |
| POST LEDs:4 |
| GENERAL |
| Operating System:Windows® 11/10 64-bit |
| Form Factor:ATX |
| Model Number:N7-Z79XT-W1 (White) / N7-Z79XT-B1 (Black) |
| UPC:810074843003 (White) / 810074843010 (Black) |
| EAN:5056547202945 (White) / 5056547202952 (Black) |
